A Homeowner’s Guide to the Multi Split System in NSW

A multi split air conditioning system is a smart solution that runs multiple indoor units from a single, powerful outdoor unit. This setup gives you independent temperature control in different rooms, all without the hassle and expense of installing ductwork. It's an incredibly flexible and energy-efficient way to heat and cool your home, making it a go-to choice for houses with unique layouts or where running ducts just isn't feasible.

Understanding How a Multi Split System Works

If you're already familiar with how a standard split system works, wrapping your head around a multi split is the next logical step. Think of the outdoor unit, also called the condenser, as the engine of your air conditioner. In a basic setup, that engine powers just one indoor unit. With a multi split, that same engine is engineered to connect to and run several indoor units at the same time.

The Core Components

A multi split system relies on a few key parts working in harmony to keep you comfortable. We ensure every component is installed to the highest standard for long-term performance.

• The Outdoor Condenser: This is the large, single unit installed outside your home. It houses the compressor, the real heart of the system, and its job is to manage the heat exchange. In summer, it pumps heat out of your home; in winter, it pulls heat in.
• Indoor Head Units: These are the units you see mounted inside your home, whether high on a wall, down near the floor, or even recessed into the ceiling. Each room you want to climate-control gets its own dedicated indoor unit.
• Refrigerant Lines: A network of insulated copper pipes connects the outdoor condenser to each of the indoor units. These lines are the highways for the refrigerant, which is the substance that actually carries heat between the inside and outside to create cool or warm air.

Independent Zone Control

The real magic of a multi split system is zoned climate control. Because each indoor unit has its own thermostat and remote, you can set a completely different temperature for each room or 'zone'.

For example, picture a typical two-storey home in the Central Coast postcode of 2260. You could have the downstairs living area set to a comfortable 23°C while the kids are home from school, but leave the unused upstairs bedrooms switched off to save power. Later in the evening, you can cool just the bedrooms for sleeping without wasting a cent on the rest of the house.

This targeted approach is far more efficient than trying to cool an entire property with one setting. That level of control is especially valuable in regions like the Hunter Valley, where one side of the house might be baking in the afternoon sun while the other remains perfectly cool. To get a better grasp of the basics, you might be interested in our guide on how a split air conditioning system works.

Comparing Your Options: Multi Split vs Single Split vs Ducted Systems

Choosing the right air conditioning system can feel like a minefield, but it really just boils down to matching the tech to your home’s layout and how your family lives. The three main contenders are single split systems, multi split systems, and fully ducted air conditioning. Each one has a specific job it does best.

The best place to start is understanding the basic difference. A single split system is a simple one-to-one deal: one outdoor unit powers one indoor unit. A multi split system is a one-to-many setup, with a single outdoor unit running several indoor units. And a ducted system is your whole-home solution, where one central unit pushes air through a hidden network of ducts.

When Single Split Systems Make Sense

A single split system is the perfect solution when you just want to cool or heat a single, defined space. Think of a standalone home office, the master bedroom, or a main living area that cops all the afternoon sun. If you only need to control the climate in one or two separate rooms, installing individual single split systems is often the most straightforward and cost-effective way to go.

The big drawback pops up when you need to cool more than two or three rooms. For every indoor unit, you need a matching outdoor unit. This can quickly clutter up the outside of your property, taking up valuable garden space and looking pretty ordinary. It also means multiple installations and separate maintenance schedules for each system.

The Ducted Air Conditioning Alternative

At the other end of the scale is ducted air conditioning. This is often seen as the premium choice for whole-home comfort, especially in new builds around Lake Macquarie or larger family homes in the Hunter Valley. A central unit, usually tucked away in the roof space, conditions the air and sends it through insulated ducts to subtle vents in each room.

The main benefit is how seamless it looks and the consistent, whole-house temperature control you get. The catch? Ducted systems need a fair bit of roof cavity space for both the indoor unit and the ductwork, which simply isn't an option in many homes. This is especially true for older properties, apartments, or houses with flat roofs. The installation is also a much bigger job and generally comes with a higher upfront cost.

Why the Right Choice Matters
Picking the wrong system can lead to years of frustration and high power bills. An undersized system will struggle on a hot day, while an oversized one will constantly switch on and off, wasting energy. The layout of your home, your budget, and how you actually use different rooms should all point you to the right decision.

Finding the Sweet Spot with a Multi Split System

This is exactly where the multi split system shines, perfectly bridging the gap between a bunch of single splits and a full ducted setup. It gives you the room-by-room zoned control of individual split systems but with the streamlined, space-saving advantage of having just one outdoor unit.

Let's paint a realistic picture. Imagine a two-storey townhouse in Terrigal with a tiny courtyard and no roof cavity for ductwork. You need to cool the downstairs living area and two bedrooms upstairs. Putting in three separate single split systems means finding a spot for three bulky outdoor units, which the body corporate probably wouldn't approve anyway. A ducted system is completely off the table.

This is the exact scenario where a multi split system is the ideal fix. One outdoor unit can be placed discreetly, connected to three separate indoor units. Each room gets its own remote and temperature control, so everyone is comfortable without compromise. It's a fantastic choice for renovations, multi-level homes, and properties across Sydney where outdoor space is a luxury.

Deciding between these options can be tricky. Before you make a final call, it's worth having a look at our guide on choosing the best air conditioner for your home to see how all these different factors come into play.

To make things a bit clearer, here’s a quick comparison of how these three systems stack up for a typical NSW home.

Air Conditioning System Comparison for NSW Homes

Ultimately, the best system is the one that fits your home's unique layout and your family's lifestyle. A multi split often provides that perfect balance of performance, flexibility, and cost for many homeowners on the Central Coast, in Sydney, and Newcastle.

The Key Advantages of Choosing a Multi Split System

When you start looking past the initial setup, a multi split system offers some powerful benefits that are a perfect match for the diverse homes and lifestyles across NSW. From genuine energy savings to custom-tailored comfort, these are the advantages that are making this technology a go-to choice for clever property owners.

The biggest drawcard by far is unmatched flexibility through zoned climate control. This is simply the ability to set different temperatures in different rooms, all running at the same time from one system.

Think about it this way: you’re working from your home office in a sunny western Sydney suburb and need it cool to focus, but the rest of the house is empty. With a multi split, you can run just that single office unit, saving a massive amount of energy compared to firing up a ducted system to cool the entire house.

Custom Comfort for the Whole Family

This level of control goes way beyond just saving power. It’s about creating personalised comfort zones for everyone in the house.

For example, you might want to keep a baby’s nursery at a consistent and safe 22°C overnight, while your teenager insists on their room being a bit cooler. At the same time, the main living area can be switched off completely. A multi split system makes this scenario easy, something a single split or a standard ducted system just can't manage with this much precision.

This customisation is a huge win for families, share houses, or anyone with rooms that have different heating and cooling needs, like a home gym or a dedicated media room.

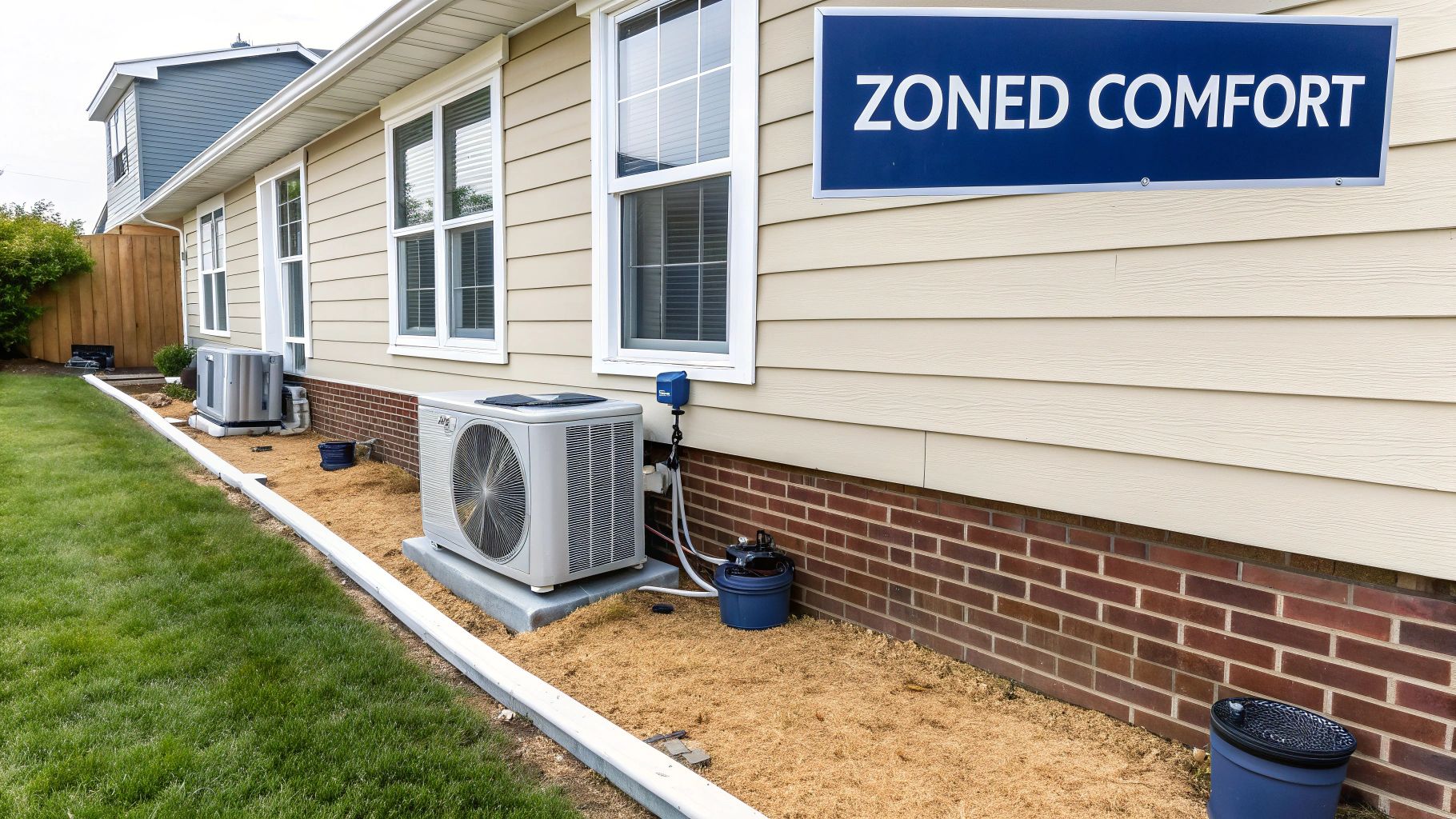

A Smart Solution for Tight Spaces

Another key benefit, especially in built-up areas, is how a multi split system saves precious outdoor real estate. For townhouses in Sydney or properties on the Central Coast with a small backyard or balcony, having just one outdoor unit is a major advantage.

Instead of lining an external wall with three or four bulky condenser units from individual split systems, you have a single, streamlined unit. This not only looks much tidier but also simplifies maintenance and often makes it far easier to comply with body corporate rules or council regulations.

The Power of One
Having a single outdoor condenser for up to five or more indoor units is more than just an aesthetic choice. It shrinks the overall installation footprint, minimises noise by consolidating it to one spot, and simplifies the electrical wiring needed. This wiring must always be handled by a licensed electrician to meet AS/NZS 3000 standards.

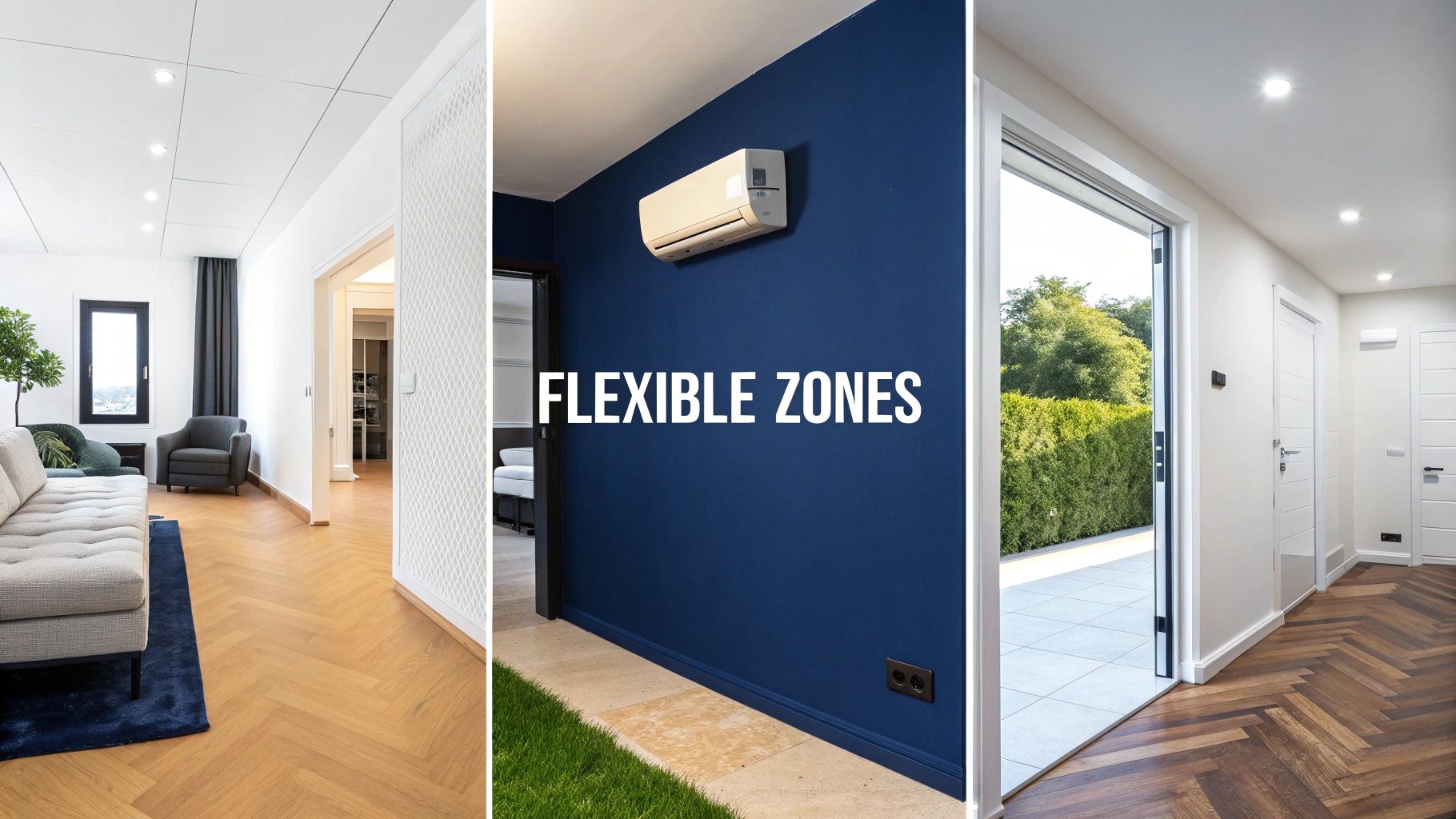

Design Freedom with Mix-and-Match Indoor Units

A multi split system also gives you incredible design freedom inside your home. You're not locked into using just one type of indoor unit for every room.

You can mix and match different styles to suit the function and look of each space. You could choose a standard high-wall unit for the bedrooms, a sleek floor-standing console for the living room, and a discreet ceiling cassette for an open-plan kitchen. This allows you to integrate your air conditioning seamlessly without compromising your home's design.

The growing popularity of this technology is clear. In 2022, Australia saw sales of 36,000 multi-split units, proving their rising appeal in regions like NSW for homeowners who want multi-room comfort without the disruption of major renovations. You can discover more insights about the local AC market trends and see how multi split systems are carving out their niche.

Sizing and Selecting the Right System for Your Home

Choosing the right multi split system isn't as simple as picking a brand off the shelf and hoping for the best. In fact, getting the size, or capacity, right is the single most important factor for making sure your system runs efficiently and actually keeps you comfortable.

Get it wrong, and you'll feel it. An undersized system will struggle endlessly on a scorching summer day, never quite getting the job done. Go too big, and the system will constantly switch on and off, a process called short-cycling, which wastes a surprising amount of electricity and fails to properly dehumidify your home, leaving you feeling cool but clammy.

The right fit is about much more than just the square metres of a room. We look at a whole range of factors to calculate the perfect match for your property.

Understanding Kilowatt Capacity

When you see air conditioners advertised, their power is measured in kilowatts (kW). It’s a common point of confusion, but this number doesn't refer to electricity usage; it's all about the unit's heating or cooling output. A small bedroom might only need a 2.5kW unit, while a large, open-plan living area could easily require 7kW or more.

With a multi split system, we calculate the total capacity needed for the outdoor unit by adding up the requirements for each indoor unit. But here's where the expertise comes in: we also consider how you actually use your home. It's pretty unlikely you'll be running every single indoor unit at full power all at the same time. We factor in this "diversity" to ensure the outdoor unit is powerful enough to handle the load without being excessive and oversized.

Why Professional Sizing Is Non-Negotiable

A "one-size-fits-all" approach simply doesn't work for air conditioning, especially in NSW where the climate can be so different from one suburb to the next. A professional, on-site assessment from a licensed technician isn't just a good idea, it's essential.

Let's imagine sizing a system for a two-storey home in Newcastle, post code 2300. The house has a west-facing living room that gets blasted by the afternoon sun but also benefits from coastal sea breezes. The upstairs bedrooms are well insulated but have older, less efficient windows.

An off-the-shelf calculator would almost certainly get this wrong. We would measure the rooms, assess the window size and orientation, check the insulation levels, and even consider the ceiling height. The western sun adds a huge heat load, but the sea breeze might offer some natural cooling. Only by factoring in all these local variables can we accurately determine the right kW capacity for each room and the corresponding outdoor unit.

Getting this wrong means you’ll either be uncomfortable or stuck with unnecessarily high power bills for years. Our team at ALC Air takes the time to do these calculations properly, ensuring your investment pays off. If you're curious, you can get a rough idea with our air conditioner room size calculator, but please remember it's no substitute for an expert on-site assessment.

Choosing the Right Brands for Reliability

With over 15 years of experience on the Central Coast and surrounding regions, we’ve learned which brands truly stand the test of time. We recommend and install systems from industry leaders known for their rock-solid reliability, performance, and excellent after-sales support.

• Daikin: Often seen as the premium choice, Daikin systems are known for their advanced features, whisper-quiet operation, and robust build quality.
• Mitsubishi Electric: A fantastic all-rounder, offering a great balance of energy efficiency, powerful performance, and long-term durability.
• Fujitsu: Known as "Australia's Favourite Air," Fujitsu provides reliable and effective systems that are trusted in countless homes across the country.

Our role isn't to push one brand over another. We listen to your needs and budget to recommend the multi split system that offers the best value and performance for your specific home.

Making Sense of Energy Efficiency Ratings

When you're comparing systems, you'll see a star rating label. This is part of a government-regulated scheme designed to make it easy to compare the energy efficiency of different models.

Put simply, the more stars, the more energy-efficient the unit is. This translates directly to lower running costs over its lifespan.

Choosing a system with a high star rating might have a slightly higher upfront cost, but the savings on your electricity bills can be massive, especially with energy prices being what they are. We always guide our clients through these ratings to help them make a smart, long-term financial decision.

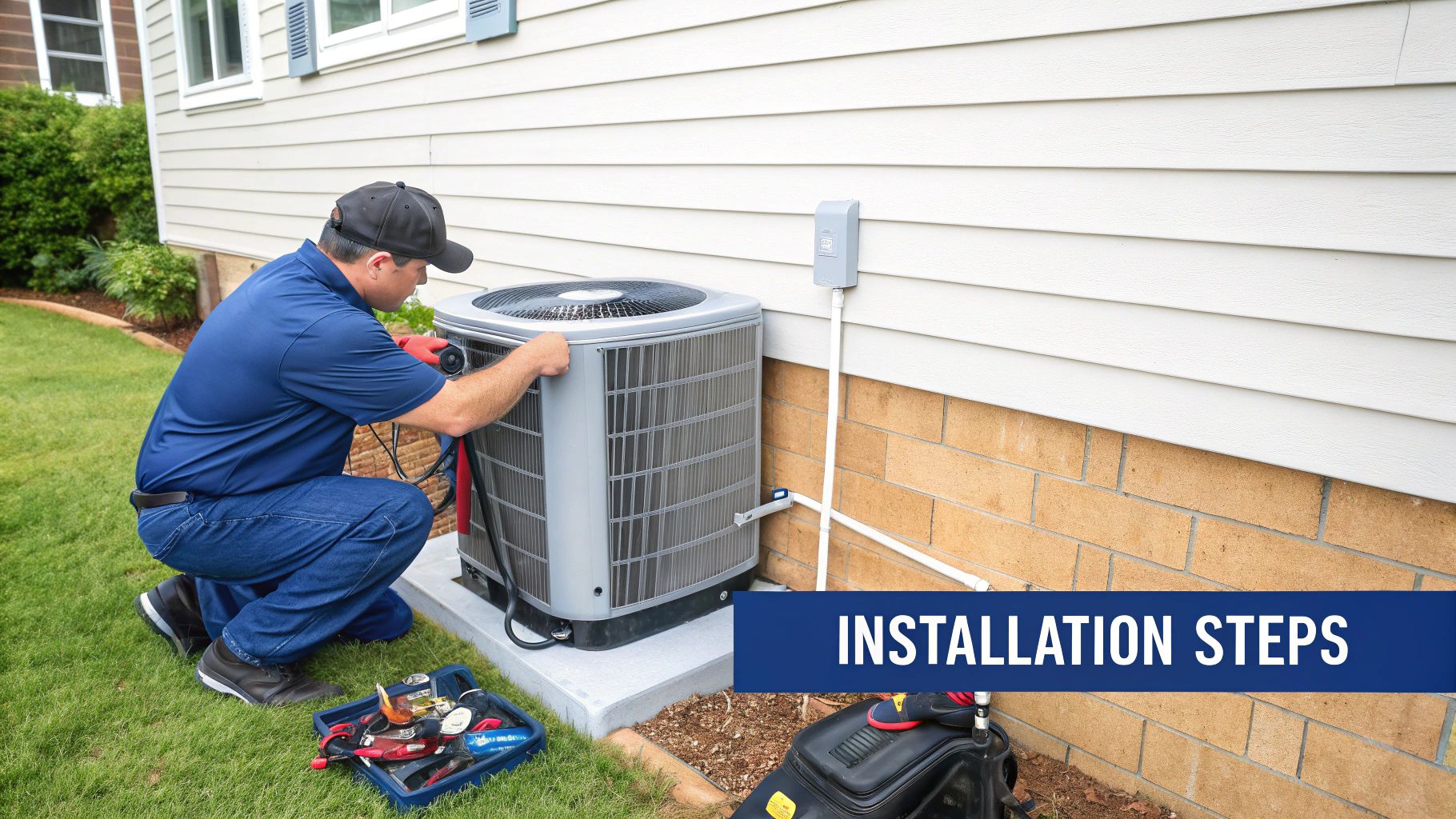

What’s Involved in a Multi Split Installation?

Understanding what happens during the installation can take a lot of the stress out of the process. A professional job is much more than just hanging a few units on the wall; it’s a carefully planned procedure designed to give you years of safe, efficient, and reliable comfort. Our team prides itself on being tidy, efficient, and respectful of your home from start to finish.

The whole journey kicks off with our initial site assessment and free quote. This is where we come to you, whether you’re in a bustling Sydney suburb or a quiet spot on the Central Coast, to size the system correctly. We'll walk through your home with you, figuring out the best spots for the single outdoor unit and each of the indoor units, considering things like sun exposure, airflow, and what will look best.

Key Steps in a Professional Installation

Once you're happy with the plan, our licensed and ARCtick certified technicians get to work. The first big step is positioning the outdoor unit. This needs a firm, level base, usually a concrete slab or sturdy mounting brackets, to keep vibration and noise to an absolute minimum.

Next, we run the refrigerant piping and electrical cables from that outdoor unit to the designated spots for each indoor head. This is a critical stage requiring real precision to comply with all Australian Standards. We always aim to run these lines as discreetly as possible, often through the roof space or wall cavities to keep them completely out of sight.

With the pipework in place, we can mount the indoor units. Each one is securely fastened and positioned to give the best possible airflow into the room. This involves drilling one small, neat hole through the external wall to connect the unit to the refrigerant lines and a drain for condensation.

A Focus on Safety and Compliance

At ALC Air, safety is non-negotiable. Every multi split installation is carried out by a licensed electrician and refrigeration mechanic. We follow the AS/NZS 3000 electrical standards to the letter and adhere strictly to SafeWork NSW guidelines to protect our team and your property.

Why This Matters: Using an unlicensed installer doesn't just void your warranty; it poses a genuine safety risk. Correct electrical work and refrigerant handling are essential for preventing house fires and making sure your system works as it should. Always ask to see an installer’s licence and ARCtick certification.

After everything is physically installed, we commission the system. This involves pressure testing the refrigerant lines, using a vacuum pump to remove every trace of moisture and contaminants, and then charging the system with the precise amount of refrigerant.

Finally, we power it up, test every single indoor unit, and then walk you through how to use your new remote controls. For a bit more detail on what this looks like, you can check out our guide on installing a split system air conditioner.

Installation and Running Costs: What's the Real Investment?

Let's get straight to the big question: what’s a multi split system actually going to cost? While there's no single price tag, understanding what goes into the final figure helps you see exactly where your investment is going. A multi split is a significant purchase, but it’s one you need to weigh up in terms of both the upfront installation and the long-term value it delivers.

At ALC Air, we believe in being completely upfront. That’s why we provide fixed upfront pricing after a proper on-site assessment. It means the quote you get is the price you pay. No hidden fees, no nasty surprises after the work is done.

What Influences the Upfront Cost?

Several key things determine the final installation price. The most obvious is the number of indoor units you need. A system for two bedrooms and a living room will, of course, cost less than one designed to handle five separate zones.

The kW capacity of the indoor units and the single outdoor condenser is another major factor. Larger rooms or spaces with high heat loads, like a west-facing living area in a Sydney suburb getting hammered by the afternoon sun, need more powerful units, which adds to the cost.

Finally, the complexity of the installation plays a huge part. A straightforward job in a single-storey home with easy access is a world away from fitting a system in a multi-storey house, a heritage property, or an apartment with tricky pipe runs and body corporate rules to navigate. The brand you choose, like Daikin or Mitsubishi Electric, also shapes the final figure.

Balancing Upfront and Long-Term Costs

A multi split system typically sits in the middle ground financially. It's generally a bigger investment than installing multiple individual single split systems, but it's often more affordable than a full ducted air conditioning setup. This sweet spot is a key reason for its growing popularity across NSW.

The real value becomes clearer when you look beyond installation day. Because a multi split lets you heat or cool only the rooms you're using, the potential for energy savings is huge. This is where the initial investment starts paying for itself through lower electricity bills over the system's life. To get a better feel for this, check out our guide on how much an air conditioner costs to run.

The NSW Market Reflects Its Value
The demand for zoned climate control is strong, especially with NSW's humid summers. In fact, New South Wales accounts for approximately 27% of all multi-split system sales in Australia. This significant market share shows that homeowners see the practical balance of performance, flexibility, and cost-effectiveness these systems provide. Learn more about NSW's HVAC market trends to see the full picture.

Got Questions About Multi Split Systems? We’ve Got Answers.

When you're thinking about a new air conditioner, it's natural to have a heap of questions. We get it. To help out, we've pulled together the most common things we get asked by homeowners across the Central Coast and Sydney, with some straight-up, practical answers.

Can I Have Different Temperatures in Each Room?

You bet. In fact, that's the whole point of a multi split system. Every indoor unit has its own thermostat and remote, giving you complete control.

This means you can have the master bedroom set to a cool 21°C for a good night's sleep while the guest room's unit is switched off entirely. It’s all about getting comfort where you need it without wasting energy cooling empty spaces.

How Many Indoor Units Can One Outdoor Unit Handle?

That really comes down to the specific outdoor unit. Most residential models from brands like Daikin or Mitsubishi Electric are designed to run anywhere from two to five indoor units.

For bigger homes or more complex layouts, there are high-capacity models that can support even more. The key is getting a professional assessment to make sure the outdoor condenser has enough grunt to handle the total cooling load without struggling on those scorching summer days.

Are Multi Split Systems Noisy?

Not at all. Modern systems are incredibly quiet, which is a huge leap from the noisy old-school air cons people remember. All the hard-working, noise-making parts are housed in the single outdoor unit.

We always make sure to position that unit somewhere it won’t cause any disturbance. The indoor units themselves are whisper-quiet, making them perfect for bedrooms, home offices, or anywhere you need a bit of peace and quiet.

Do All the Indoor Units Have to Be the Same?

Absolutely not, and this is another great advantage of going with a multi split. You have the flexibility to mix and match different types of indoor units to suit each specific room.

For example, you could put a standard, cost-effective wall-mounted unit in the kids' bedrooms, a stylish floor-standing console in the formal lounge, and a sleek, out-of-the-way ceiling cassette in your open-plan living and kitchen area. They all run seamlessly off the one outdoor unit.

The demand for flexible, zoned air conditioning is growing fast here in Australia. Market projections show the industry climbing from USD 2.48 billion in 2024 to USD 3.67 billion by 2030, and multi splits are a huge part of that. NSW is leading the way, already making up 27% of national multi-split sales because they’re just such a good fit for our lifestyle and climate. If you're interested in the numbers, you can read more research on the Australian AC market.

Ready to figure out the perfect climate control for your home? The team at ALC Air has over 15 years of hands-on experience designing and installing multi split systems. Get your free, no-obligation quote today!
